Overview

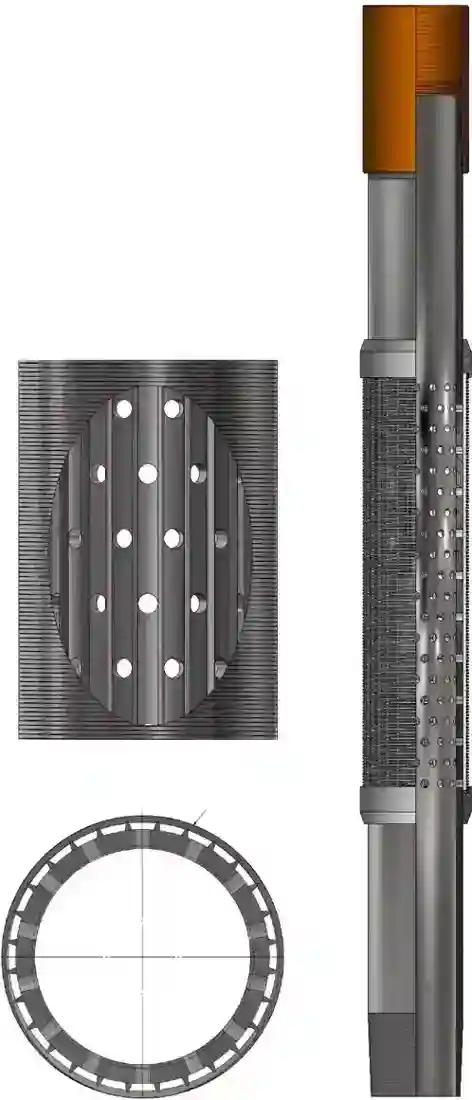

• This wire wrapped screen jacket is installed on a perforated base pipe up to Ø 7”- 39ft length.
• The screen can be manufactured up to a total length of 33ft (10 m), from corrosion resistant materials.
• The perforated joint is perforated with a 39ft (12m) bed length, 8 spindle Drilling machine.
• The DOT standard spiral and staggered perforation patterns use Ø 3/8” and Ø 1/2” diameter holes, to create the client’s required open area. Upon request, custom hole sizes can be drilled in any number and any pattern. Every joint perforated is deburred internally and externally.
• The screen jacket is fully pickled and passivated for maximum corrosion resistance.

Applications

• Oil and Gas wells.
• Sand control completions.
• Installations with Inflow or injection control devices.
• Thermal applications, including heavy-oil and steam assisted wells.

Features

• Available in base pipe sizes from 2 7/8 to 7 in.
• Coherent, harmonious, and precise slot opening.
• Slot opening from 50 micron up to 2000 micron.
• Customized material grades 304/316L/904/Duplex/Alloy 625.

Benefits

• Longer laminar flow preventing erosion.
• Improved flow efficiency into basepipe.
• Longer well life and optimized production.
